Liquid Die Springs

World leaders in the field of shock & vibration with over 60 years of industry experience.

Industrial Strength Liquid Die Springs

Our liquid die springs operate by mechanically compressing a liquid, Tayco Piezoil, in a sealed chamber. A piston moves into a cylinder filled with this liquid to compress it 9.4% at 20,000 PSI. The effect is roughly comparable to forcing 10 gallons of liquid into a 9-gallon container.

Preload is the resistant force within the unit that must be overcome to initiate piston travel. Endload is the maximum force capacity of a unit at the end of its given stroke or travel. Never exceed the given stroke of any unit. Overstroking causes seal damage and loss in both preload and endload.

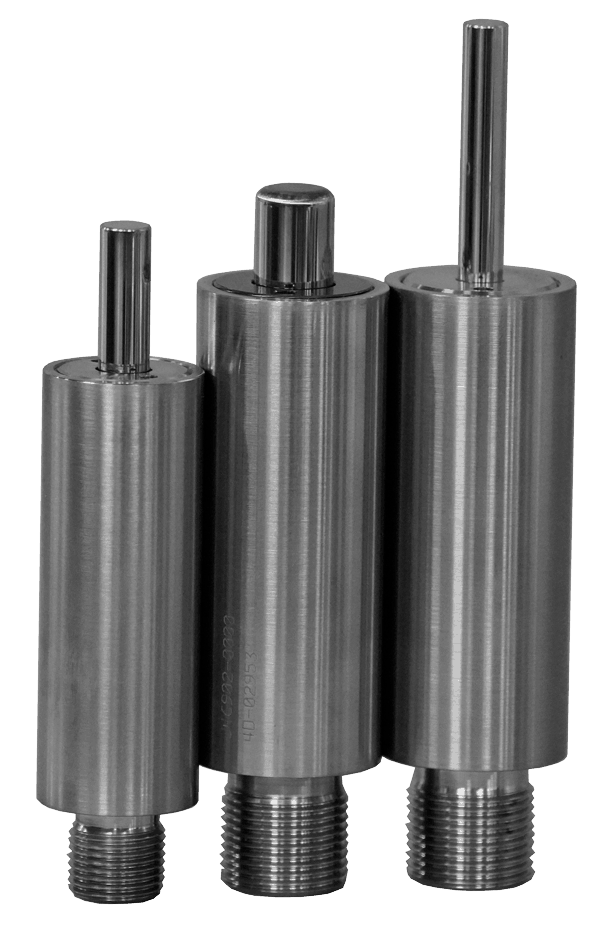

Liquid Die Springs

The liquid die spring is designed with a standard threaded end fitting so that the unit can be installed in any position. In the vertical position, however, the unit may simply be set in a bored hole with the unit resting on a flat bottom or on its shoulder. Insertion may be done by hand.

Heat is generated within the unit as it is cycled. This heat must be dissipated in order for the unit to operate satisfactorily. Therefore, to prevent overheating, the maximum allowable stroke of a given unit is reduced as the cyclic rate is increased.
